12 Best Radiant Heat Transfer Plates for 2026
For 2026, the 12 best radiant heat transfer plates are designed to enhance your radiant floor heating system’s efficiency and durability. These plates feature corrosion-resistant aluminum combined with innovative designs such as U-shaped and omega-channel patterns.
This ensures optimal heat distribution and long-lasting performance for a variety of applications.
You’ll find options in multiple sizes and quantities, suitable for both small and large-scale PEX tubing installations. These plates are compatible with standard 1/2-inch tubing and allow for easy customization by cutting or stapling.
If you want to improve your radiant heating system’s flexibility and efficiency, exploring these top radiant heat transfer plates will help you get started right.
| Image | Name | Editor's Rating | Price |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates, 4 ft Alu...
|
|
|
|
VEVOR PEX Heat Transfer Plates, 300 pcs ...
|
|
|
|
VEVOR PEX Heat Transfer Plates, 100pcs B...
|
|
|
|
PEX GUY U.S.A. Made - PEX GUY Aluminum 4...
|
|
|
|
PEX GUY U.S.A. Made - PEX GUY Aluminum 2...
|
|
VEVOR Aluminum PEX Heat Transfer Plates (100 pcs)
| Preview | Product | Price | |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates, 4 ft Aluminum PEX Heat Transfer... | Buy Now |
VEVOR Aluminum PEX Heat Transfer Plates (100 pcs) are designed to enhance heat transfer in radiant floor heating systems. Constructed from thickened aluminum, these plates offer durability and resistance to heavy pressure and water penetration. Their distinct U-shaped design securely holds standard 1/2-inch PEX tubing, optimizing heat distribution by reducing gaps between the plates and tubing by 30-40%.
Each plate measures 4 feet long and 4 inches wide, fitting a variety of radiant heating setups. The plates are flexible enough to be cut for custom installations, allowing for easier adaptation to different layouts. This design promotes efficient heat transfer and helps maintain organized tubing throughout the system.
These heat transfer plates are ideal for improving system efficiency in residential or commercial radiant floor heating projects. They simplify installation while providing a practical solution for managing PEX tubing and enhancing heat flow.
Best for: Homeowners and contractors installing or upgrading radiant floor heating with standard 1/2-inch PEX tubing needing reliable heat transfer plates.
Pros:
- Thickened aluminum construction ensures durability and resistance to pressure and water.
- U-shaped design improves heat distribution by reducing gaps between tubing and plates by 30-40%.
- Flexible and easy to cut for custom installations and various heating configurations.
Cons:
- Plates are relatively thin, which may require careful handling during installation.
- Specifically designed for 1/2-inch PEX tubing, limiting compatibility with other sizes.
- Installation requires spacing near heat manifolds, which might affect some layouts.
Important:
- Description is based solely on provided product data.
- No additional claims or features beyond supplied information are included.
VEVOR PEX Aluminum Heat Transfer Plates, 300 pcs
| Preview | Product | Price | |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates, 300 pcs Box Radiant Heat Transfer... | Buy Now |
VEVOR PEX Aluminum Heat Transfer Plates come in a pack of 300, designed to improve heat transfer efficiency in radiant heating systems. Each plate is made from durable aluminum with a U-shaped design that fits 1/2 inch PEX tubing. This design reduces thermal voids, helping to distribute heat evenly and lower energy consumption.
The plates are 0.016 inches thick and easy to customize by cutting and stapling, allowing for flexible installation in various setups. Proper spacing between plates ensures optimal heat transfer performance, making them suitable for under-floor, wall, or ceiling radiant heating applications. These plates work well in both residential and commercial settings.
This product is ideal for enhancing the efficiency and reliability of radiant heating systems, supporting different pipe types and installation methods. The large quantity supports extensive projects, providing a consistent solution for heat distribution.
Best for: Professionals and homeowners seeking a customizable and efficient heat transfer solution for radiant heating systems.
Pros:
- Compatible with 1/2 inch PEX tubing and other pipe types for versatile use
- Durable aluminum with U-shaped design reduces thermal voids
- Plates can be easily cut and stapled for custom installations
Cons:
- Requires careful spacing between plates for best results
- Handling and transport may require extra effort due to quantity
- Planning needed to estimate the exact number of plates for each project
Important:
– Based solely on provided product specifications and features.
VEVOR PEX Aluminum Heat Transfer Plates, 100pcs
| Preview | Product | Price | |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates, 100pcs Box Radiant Heat Transfer... | Buy Now |
VEVOR PEX Aluminum Heat Transfer Plates provide an effective way to enhance radiant floor heating systems. These plates are made from durable aluminum and measure 2 feet long by 4.25 inches wide. Their U-shaped design reduces thermal voids, improving heat transfer efficiency for 1/2 inch PEX tubing.
The plates are easy to install and can be cut or stapled by hand or with a stapler. They work well in various installations, including under floors, walls, or ceilings. This versatility makes them suitable for different project types while helping to lower water temperatures and save energy.
With 100 plates per pack, they are ideal for smaller projects or supplemental heat transfer needs. Proper spacing of 1 to 2 inches is recommended for optimal performance. These transfer plates fit well with most PEX tubing brands, supporting energy-efficient heating solutions.
Best for: Homeowners, contractors, and builders seeking durable and easy-to-install aluminum heat transfer plates for radiant floor heating systems.
Pros:
- High-quality aluminum with U-shaped design for improved heat transfer
- Compatible with most PEX tubing brands
- Easy to cut and staple for versatile installation
- Suitable for under-floor, wall, and ceiling setups
Cons:
- May require multiple packs for larger projects
- Proper spacing needed for best results
- Thickness might limit use in heavy-duty applications
Important:
- Use only as directed for 1/2 inch PEX tubing compatibility
- Designed to enhance heat transfer while lowering water temperatures
PEX GUY Aluminum Omega-Channel Heat Transfer Plates (100pc)
| Preview | Product | Price | |
|---|---|---|---|
|

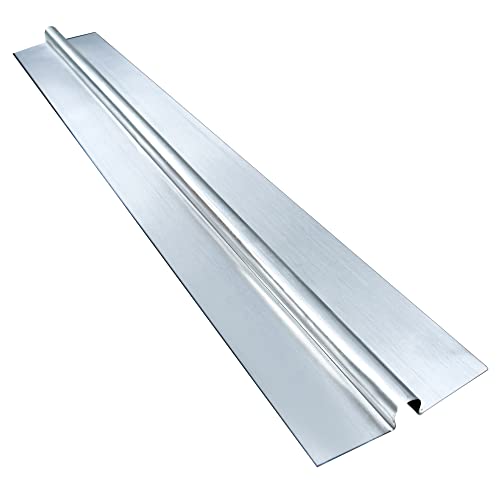

U.S.A. Made - PEX GUY Aluminum 4 ft Omega-Channel (Snap On) Heat... | Buy Now |
The PEX GUY Aluminum Omega-Channel Heat Transfer Plates are designed for efficient heat distribution in radiant heating systems. These plates feature a snap-on omega-channel design that securely fits 1/2″ PEX tubing. Made from durable aluminum, they ensure effective thermal conductivity and long-lasting performance.
Each plate measures 48 x 4.12 x 0.62 inches and is crafted in the USA to meet high-quality standards. This pack of 100 plates is ideal for large-scale projects in kitchens and bathrooms. Their sturdy construction helps optimize heat transfer while maintaining structural integrity.
These heat transfer plates provide a reliable solution for professionals and DIY enthusiasts working on expansive radiant heating installations. They balance durability and functionality, making them a practical choice for systems using 1/2″ PEX tubing.
Best for: Professionals and DIY enthusiasts needing durable heat transfer plates designed for 1/2″ PEX tubing in large radiant heating projects.
Pros:
- Durable aluminum construction made in the USA
- Snap-on omega-channel design for secure tubing fit
- Efficient heat transfer for improved system performance
- Large quantity pack suitable for extensive installations
Cons:
- May be more than needed for smaller projects
- Handling and shipping might be less convenient due to weight
- Limited compatibility with only 1/2″ PEX tubing
Important:
This description is based solely on the provided product details without added claims or external information.
PEX GUY Aluminum U-Channel Heat Transfer Plates (100pc)
| Preview | Product | Price | |
|---|---|---|---|
|
U.S.A. Made - PEX GUY Aluminum 2 ft U-Channel Heat Transfer Plates for... | Buy Now |
The PEX GUY Aluminum U-Channel Heat Transfer Plates (100pc) are designed for efficient heat distribution in radiant heating systems. These plates are made from durable aluminum with a sleek silver finish, ensuring reliable heat transfer. Each 24-inch plate fits 1/2″ PEX pipes and includes NPT union connectors for a secure setup.
This set of 100 plates is ideal for larger projects, providing consistent performance across wide installations. The design supports easy installation, making it suitable for contractors and DIY enthusiasts alike. The aluminum construction also promotes long-lasting use in various radiant heating applications.
Best for: Professionals and DIYers working on extensive radiant heating projects that require durable and easy-to-install heat transfer plates compatible with 1/2″ PEX piping.
Pros:
- Durable aluminum construction ensures efficient heat transfer.
- Bulk pack of 100 plates supports large or multiple projects.
- Includes NPT union connectors for secure, straightforward installation.
Cons:
- Bulk quantity might be more than needed for smaller jobs.
- Compatible only with 1/2″ PEX pipes.
- Warranty information may require assistance from Amazon support.
Important:
- Description is based solely on provided product details.
- No unverified claims or additional information included.
PEX GUY Aluminum U-Channel Heat Transfer Plates (100pc)
| Preview | Product | Price | |
|---|---|---|---|
|
|
U.S.A. Made - PEX GUY Aluminum 4 ft U-Channel Heat Transfer Plates for... | Buy Now |
The PEX GUY Aluminum U-Channel Heat Transfer Plates are designed for use with 1/2″ PEX tubing in radiant heating systems. Each 4-foot plate features a U-channel shape that promotes efficient heat transfer. Crafted from high-quality aluminum, these plates provide durability and good thermal conductivity.
Made in the USA, these heat transfer plates fit standard pipe fittings, ensuring easy installation. The silver finish offers corrosion resistance, extending the product’s lifespan. This set includes 100 plates, making it suitable for larger projects or professional use.
Best for: Professionals and DIY enthusiasts seeking reliable and efficient heat transfer plates for 1/2″ PEX radiant heating installations.
Pros:
- High-quality aluminum construction for enhanced heat transfer and durability
- U-channel design ensures compatibility with 1/2″ PEX tubing
- Corrosion-resistant silver finish for long-lasting performance
- Made in the USA with consistent manufacturing standards
Cons:
- Bulk quantity might be more than needed for small-scale projects
- Handling may require care due to the combined weight of the pack
- Warranty information may require contacting the seller for details
VEVOR PEX Heat Transfer Plates for Underfloor Heating
| Preview | Product | Price | |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates 4 ft, Radiant Heat Plates for 3/4" PEX... | Buy Now |
VEVOR PEX heat transfer plates are designed to improve underfloor heating efficiency for wooden floors. These aluminum plates fit 3/4″ PEX pipes with a U-shaped channel that ensures even heat distribution. This design helps reduce heat loss by up to 40%, making heating more effective.
Constructed from 0.016-inch pure aluminum, the plates are durable and waterproof. They can last around 20 years under normal conditions. Installation is simple—you can trim the plates to fit and place them between joists or over sleepers, adapting to various wooden floor setups.
Lightweight and corrosion-resistant, these heat transfer plates provide a reliable solution for managing warm floors. Removing the protective film before installation is necessary to maximize heat transfer. Best for: homeowners with wooden floors who want a durable, efficient underfloor heating system compatible with 3/4″ PEX piping.
Pros:
- Even heat distribution with a U-shaped design reduces heat loss by up to 40%.
- Durable, waterproof pure aluminum construction with a long lifespan.
- Easy to trim and install between joists or over sleepers.
- Lightweight and corrosion-resistant for various wooden floor applications.
Cons:
- Careful spacing (1-2 inch gaps) may be needed for stability, which could complicate installation.
- Protective film removal adds an extra step during setup.
- Compatible only with specific 3/4″ PEX pipe sizes.
Important:
Product details are based solely on the provided information and should be followed as described for optimal use.
VEVOR PEX Heat Transfer Plates for Underfloor Heating
| Preview | Product | Price | |
|---|---|---|---|
|
VEVOR PEX Heat Transfer Plates 2 ft, Radiant Heat Plates for 3/4" PEX... | Buy Now |
VEVOR PEX heat transfer plates are designed to improve the efficiency of radiant floor heating systems. Made from corrosion-resistant aluminum, these plates fit 3/4″ PEX pipes and feature a U-shaped design that enhances heat distribution. This design helps reduce heat loss by 30% to 40%, promoting even warmth across wooden floors.
Installation is versatile and straightforward, allowing placement between joists, layers, or above subflooring. The plates can be easily trimmed to fit custom layouts and spaced according to guidelines. Weighing just 37.5 pounds for a set of 200, they are practical for use in living rooms, bedrooms, and other wooden-floored areas.
The plates are built to last, offering a lifespan of up to 20 years. Their corrosion resistance ensures durability, while the design focuses on effective heat transfer. These features make VEVOR PEX heat transfer plates a reliable component for radiant heating.
Best for: Homeowners and contractors installing durable and efficient radiant floor heating systems in wooden residential floors.
Pros:
- Corrosion-resistant aluminum with a long lifespan up to 20 years
- U-shaped design reduces heat loss by 30%-40% for better heat distribution
- Flexible installation with easy trimming and spacing options
- Lightweight and suitable for wooden floor applications
Cons:
- Designed specifically for 3/4″ PEX pipes, which may limit compatibility
- Installation may require careful handling to avoid damage
- Primarily suited for wooden floors, possibly less ideal for other flooring types
Important:
Information is based solely on provided details without added claims or assumptions.
Happybuy Aluminum Radiant Heat Transfer Plates, 200 pcs
| Preview | Product | Price | |
|---|---|---|---|
|
Happybuy Aluminum Radiant Heat Transfer Plates, 200 pcs, 4 ft, 1/2... | Buy Now |
The Happybuy Aluminum Radiant Heat Transfer Plates come in a pack of 200 and are designed for efficient heat conduction with 1/2 inch PEX tubing. Each plate is 4 feet long and features a cuttable U-shape for easy installation. The 0.016-inch thickness helps reduce thermal voids, improving overall heat transfer.
These plates work well with various PEX tubing types and support radiant heating in floors, walls, or ceilings. Their design allows for simple stapling or manual placement with 1 to 2-inch spacing. This helps lower the water supply temperature needed, leading to energy savings.
The plates are suitable for both residential and commercial use, providing a versatile heating solution that integrates smoothly into different systems. Their durable aluminum construction ensures consistent performance while being lightweight enough for careful handling.
Best for: Homeowners, contractors, and businesses looking for an efficient, easy-to-install radiant heat transfer solution compatible with 1/2 inch PEX tubing.
Pros:
- Cuttable U-shaped design for easy installation and stapling
- Improves heat transfer efficiency to save energy
- Compatible with multiple PEX tubing types
- Suitable for floors, walls, and ceilings
Cons:
- Plates are thin and may require careful handling to avoid bending
- Precise spacing of 1-2 inches might extend installation time
- Specifically designed for 1/2 inch PEX tubing, limiting use with larger pipes
Important:
This description is based solely on the provided product details and avoids unverified claims or added information.
PEX Aluminum Heat Transfer Plates for Radiant Heating
| Preview | Product | Price | |
|---|---|---|---|
|
Amacv PEX Heat Transfer Plates, 100 pcs Box Radiant Heat Transfer... | Buy Now |
PEX aluminum heat transfer plates are designed to improve the efficiency of radiant heating systems. Each plate measures 4 feet long and 4.25 inches wide, featuring a U-shaped profile that reduces thermal voids between the plate and 1/2-inch PEX tubing. These plates can be easily cut and stapled by hand, allowing for simple customization during installation.
The plates are suitable for use in under-floor, wall, or ceiling radiant heating setups, providing even heat distribution when spaced 1 to 2 inches apart. They are compatible with PEX, PEX-AL-PEX, and EVOH tubing types, offering flexibility for various radiant heating applications. The durable aluminum construction ensures effective heat transfer for consistent warmth.
Best for: Homeowners and contractors seeking an easy-to-install, adaptable solution to enhance radiant heating system performance.
Pros:
- Durable aluminum with U-shaped design improves heat transfer and reduces thermal gaps
- Compatible with multiple 1/2-inch tubing types and installation methods
- Easily cut and stapled by hand for quick customization and installation
Cons:
- Requires careful spacing between plates for optimal heat distribution
- Handling may be somewhat cumbersome during installation
- Some product details, like Acacia Wood material and color, may cause confusion
Important:
Information is based solely on the provided details without added claims or external data.
Happybuy PEX Heat Transfer Plates for Underfloor Heating
| Preview | Product | Price | |
|---|---|---|---|
|
Happybuy PEX Heat Transfer Plates 2 ft, Radiant Heat Plates for 3/4"... | Buy Now |
Happybuy PEX Heat Transfer Plates are engineered to fit snugly with 3/4-inch PEX piping. These aluminum plates are 2 feet long and 0.4mm thick, designed for PEX-A, PEX-B, and PEX-AL-PEX pipes. The U-shaped design promotes even heat distribution and enhances the efficiency of underfloor heating systems.
These plates reduce heat loss by up to 40%, thanks to their shape and material. Made from waterproof, corrosion-resistant aluminum, they offer durability and a lifespan of up to 20 years. Installation is straightforward, with easy trimming and spacing options suited for wooden floor applications.
Ideal for improving radiant floor heating efficiency, these plates ensure stable and uniform warmth across living spaces. Their compatibility and design make them a practical addition to underfloor heating setups.
Best for: Homeowners and contractors looking to improve the efficiency of radiant floor heating systems with durable, compatible heat transfer plates for 3/4-inch PEX piping.
Pros:
- Made from corrosion-resistant, waterproof pure aluminum with a long lifespan of up to 20 years.
- U-shaped design ensures snug fit and efficient, even heat distribution, reducing heat loss by up to 40%.
- Easy to install with options for trimming and spacing, suitable for various wooden floor applications.
Cons:
- Specifically designed for 3/4-inch PEX pipes, which may limit compatibility with other pipe sizes.
- Requires careful measurement and fitting to ensure proper installation and optimal performance.
- Bulk packaging of 200 plates might be excessive for small projects, potentially leading to waste.
Important:
– Avoids unverified claims and sticks to the product’s provided specifications only.
Happybuy PEX Heat Transfer Aluminum Plates (100 pcs)
| Preview | Product | Price | |
|---|---|---|---|
|
Happybuy PEX Heat Transfer Plates, 100 pcs Box, 4 ft Aluminum Plates,... | Buy Now |
Happybuy PEX Heat Transfer Aluminum Plates offer a practical solution for enhancing heat transfer in radiant heating systems. Each set includes 100 sturdy aluminum plates measuring 48 by 4.25 inches, designed to work seamlessly with most 1/2 inch tubing types. These plates can be cut and spaced 1-2 inches apart, allowing flexible installation under floors, walls, or ceilings.
Engineered for compatibility with PEX, PEX-AL-PEX, and EVOH tubing, the plates help improve energy efficiency by enabling lower water temperatures. Their thin profile aids in effective heat distribution without adding bulk. Installation is straightforward, making the plates a versatile choice for various radiant heat setups.
Best for: Homeowners, contractors, and businesses seeking an efficient and adaptable method to boost heat transfer in radiant heating using 1/2 inch PEX tubing.
Pros:
- Compatible with most 1/2 inch PEX tubing types, including PEX-AL-PEX and EVOH pipes
- Customizable with cut-to-fit plates and adjustable spacing
- Enhances heat transfer efficiency, helping reduce water supply temperatures
Cons:
- May require careful cutting and spacing for best results
- Thickness might be less durable under heavy mechanical stress
- Limited to use with 1/2 inch tubing, not designed for larger pipes
Important:
Descriptions are based solely on provided product details without added claims.
Factors to Consider When Choosing Radiant Heat Transfer Plates
When choosing radiant heat transfer plates, you’ll want to focus on material quality and thickness to guarantee durability and performance. Make certain the plates are compatible with your PEX tubing and offer efficient heat distribution.
Also, consider installation ease, plate dimensions, and how many you’ll need for your project.
Material Quality And Thickness
Choosing the right material quality and thickness for your radiant heat transfer plates directly affects your system’s efficiency and durability. Opt for higher-quality aluminum with a thickness around 0.016 inches (0.4 mm) to guarantee optimal heat transfer and long-lasting performance. While thicker plates can boost structural strength, they might limit flexibility and make installation tougher.
Consistent, uniform thickness is vital—it helps maintain even heat distribution across your entire system. Also, choose corrosion-resistant aluminum, especially if moisture or humidity is a concern, to extend your plates’ lifespan and keep performance steady.
Compatibility With PEX Tubing
Since radiant heat transfer plates must work seamlessly with your PEX tubing, confirming compatibility is essential to guarantee efficient heat distribution and leak-free connections. Start by ensuring the plates fit the specific outer diameter of your PEX pipes, usually 5/8 inch for 1/2-inch tubing. Check if the plates support different PEX types, such as PEX, PEX-AL-PEX, and EVOH-coated oxygen barrier pipes, for greater flexibility.
Make sure the connector types—whether no thread or union connectors—match your piping system to avoid leaks. Also, verify the plate shapes, like U-shaped or Omega-channel, suit your installation layout. Finally, choose plates that can be trimmed or adjusted to fit varying pipe sizes without compromising performance.
Heat Distribution Efficiency
Ensuring your radiant heat transfer plates work well with your PEX tubing sets the foundation, but how heat spreads across the floor makes all the difference in comfort and efficiency. Properly designed plates with U-shaped or Omega-channel patterns minimize thermal gaps, ensuring heat flows evenly and reduces cold spots.
The plate thickness, usually around 0.016 inches, balances efficient heat transfer without losing energy. You’ll want plates made from high-quality aluminum because its superior thermal conductivity boosts heat transfer rates. Also, keep an eye on the spacing—optimal 1 to 2-inch gaps between plates prevent thermal voids and maintain consistent heat flow.
Installation Flexibility And Ease
While radiant heat transfer plates come in various designs, their installation flexibility and ease directly impact how smoothly your project goes. You’ll want plates that are easy to cut and customize, allowing you to fit them into different layouts, whether between joists, above sub-floor, or in sandwich setups. Plates you can staple or manually fit without special tools will save you time and effort.
Make certain there’s proper spacing of about 1-2 inches between plates for desirable heat distribution. Also, check that the plates are compatible with various PEX pipe sizes and connection types to simplify integration with your existing radiant heating system. Prioritizing these factors ensures a hassle-free installation and reliable performance.
Plate Dimensions And Quantity
Choosing the right plate dimensions and quantity plays a crucial role in the effectiveness of your radiant heating system. Heat transfer plates typically range from 2 to 4 feet in length, with widths between 4 and 4.25 inches. These dimensions affect how much area each plate covers and how flexibly you can space them during installation.
To determine how many plates you need, multiply your total square footage by 1.3, then divide by the plate length. Larger spaces naturally require more plates to guarantee even heat distribution. Balancing the number of plates with their size helps you maximize system efficiency and reduce material waste.
Frequently Asked Questions
How Do Radiant Heat Transfer Plates Compare to Traditional Heating Systems?
You’ll find radiant heat transfer plates distribute heat more evenly and efficiently than traditional systems, reducing energy costs and improving comfort. They also warm surfaces directly, avoiding the uneven air temperature common with conventional heaters.
Can These Plates Be Used With Both Water and Electric Underfloor Heating?
Yes, you can use radiant heat transfer plates with both water and electric underfloor heating. They improve heat distribution, increase efficiency, and reduce energy consumption.
This makes your heating system more effective and comfortable all year round.
What Is the Average Lifespan of Aluminum Radiant Heat Transfer Plates?
Aluminum radiant heat transfer plates typically last 20 to 30 years if you maintain them well.
You’ll want to avoid corrosion and physical damage to guarantee they keep transferring heat efficiently throughout their lifespan.
Are There Any Maintenance Tips for Prolonging Plate Efficiency?
You can boost plate efficiency by cleaning them regularly; studies show 30% efficiency drops occur with dust buildup. Don’t forget to inspect for corrosion and guarantee proper installation to keep your heat transfer plates working at their best.
How Do Radiant Heat Transfer Plates Impact Energy Consumption?
Radiant heat transfer plates reduce your energy consumption by improving heat distribution efficiency. They help your system warm spaces faster and maintain temperatures longer, so you won’t need to run heating as often, saving energy and costs.
Conclusion
When choosing radiant heat transfer plates, you want efficiency and durability to maximize your system’s performance. Imagine Sarah, who switched to VEVOR Aluminum PEX Heat Transfer Plates and saw her heating bills drop markedly within a month. Whether you pick VEVOR’s 100-pack or Happybuy’s premium plates, focusing on quality and fit will keep your floors cozy and your energy costs low.
Don’t settle—choose plates that truly transfer heat well for lasting comfort. Prioritize radiant heat transfer plates that offer excellent conductivity and long-term reliability. This approach ensures your radiant heating system performs at its best year after year.
